Lighting
Tractor Road Lighting

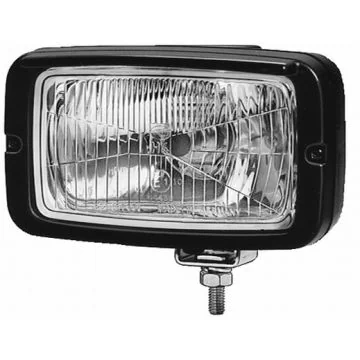

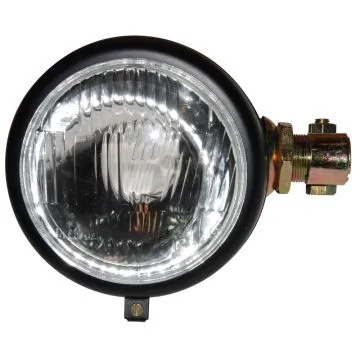

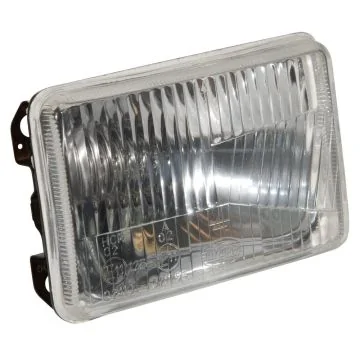

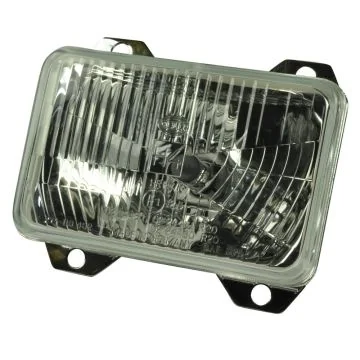

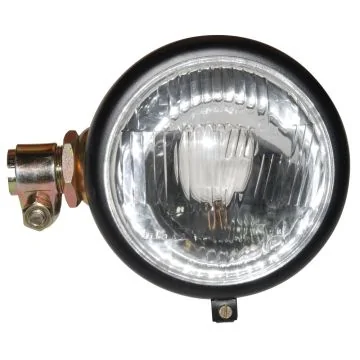

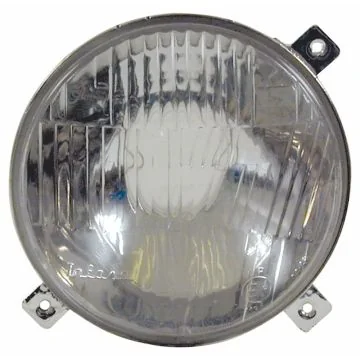

Headlamps

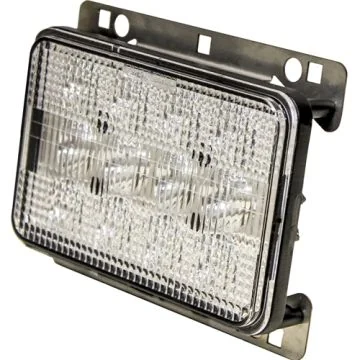

Tractor headlamps must meet the minimum light output requirements for road use under UK regulations. Original sealed beam units in 178 mm and 146 mm formats are available as direct replacements for older tractors. Halogen conversion kits retrofit into the original sealed beam mounting and provide significantly improved light output for road driving. LED headlamp conversions are available for many tractor makes and offer lower power consumption, longer service life, and improved colour temperature compared to halogen units.

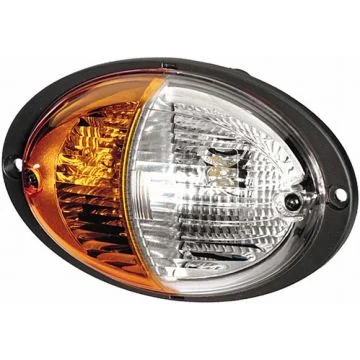

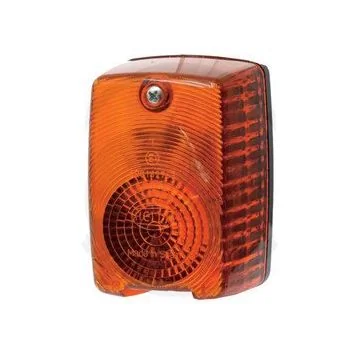

Rear Lights, Brake Lights and Indicators
Rear light clusters must provide tail light, stop light, and indicator functions separately , a combined cluster that cannot independently illuminate each function does not meet road lighting regulations. Replacement rear light clusters and individual lens assemblies are available for most tractor makes. Indicator relay units control flash rate , a failed relay causes rapid flashing or no flash on the affected circuit, which is a roadworthiness failure.

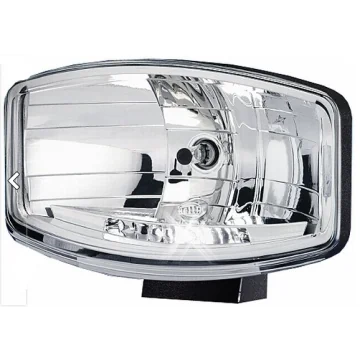

Tractor Work Lights
LED work lights are now the standard choice for tractor field lighting, having replaced halogen units across most applications. LED advantages include significantly higher light output per watt, resistance to vibration failure, instant-on operation, and service lives measured in tens of thousands of hours. LED work light beam patterns are available in flood, spot, and combination formats , flood beams illuminate a wide area close to the tractor, while spot beams illuminate ahead at distance for road transport.

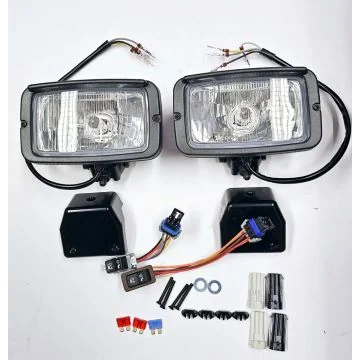

Mounting options for work lights include cab roof mounting, bonnet mounting, and front weight frame mounting. Rear-facing work lights for loader work and reverse driving are available in the same LED format. Work light wiring looms and switch kits are available for clean OEM-style installations.
Tractor Beacon Lights
Amber beacon lights are required on agricultural tractors exceeding 40 km/h on public roads, and are strongly recommended practice on slower machines as a high-visibility warning to other road users. LED beacon lights are available in rotating, strobing, and multi-pattern formats. Magnetic-base beacon lights are convenient for tractors that make occasional road journeys , permanent-mount beacon bases are recommended for tractors in regular road use.

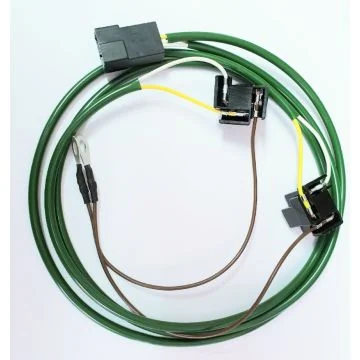

Tractor Lighting Wiring and Connectors
ISO 11786 7-pin and 13-pin lighting connectors are the standard for trailer and implement lighting connections on current tractors. Replacement socket assemblies, male plug connectors, and wiring repair kits are available. Where a tractor has corroded or damaged lighting connectors, a complete socket replacement is more reliable than pin-by-pin repair , the socket housing seal is as important as the terminal connection for weather resistance.
Frequently Asked Questions
What lighting parts does Nick Young Tractor Parts supply?
Nick Young Tractor Parts supplies a full range of tractor lighting parts, including LED and halogen work lights, headlamps, rear and tail lights, indicators, number plate lights, marker lights, flashing beacons, strobe lights, light brackets and bulbs. Stock covers John Deere, Massey Ferguson, Case IH, New Holland, Ford, Fendt, Claas, Deutz-Fahr and other major tractor brands.
Why does a tractor have flashing amber lights?
A tractor has a flashing amber beacon to warn other road users that it is a slow-moving vehicle. The amber beacon makes the tractor visible from a distance on the road and is a legal requirement for agricultural vehicles travelling on public roads in the UK.
What is the difference between LED and halogen tractor work lights?
LED and halogen are the two main types of tractor work light. A halogen work light uses a heated filament bulb, while an LED work light uses light-emitting diodes that produce a brighter, whiter beam, draw far less power and last considerably longer.
Why are LED work lights better for tractors?
LED work lights are better for tractors because they produce more light for less electrical load, withstand vibration far better than filament bulbs, and rarely need replacing once fitted. The lower power draw also reduces strain on the tractor's charging system, which suits older tractors with a dynamo.
What types of beacon does a tractor use?
A tractor uses two main beacon types: rotating beacons, which spin a bulb behind a lens, and LED beacons, which flash a static array of diodes. Both produce the amber warning signal required for road use, and LED beacons last longer and resist vibration better than rotating types.
Can I upgrade my tractor lights to LED?
A tractor's lights can be upgraded to LED, with LED work lights, headlamps, beacons and bulbs available to replace older halogen and filament units. Customers send the tractor make, model and the type of light being replaced to the Nick Young Tractor Parts team, and the parts team matches a suitable LED upgrade.
What lighting does a tractor need to be road legal in the UK?
A tractor used on UK roads needs front headlamps, rear position lights, indicators, a number plate light, red rear reflectors and a flashing amber beacon. Nick Young Tractor Parts supplies the lighting parts needed to keep an agricultural tractor road legal.
How do I identify the correct lighting part for my tractor?
The correct lighting part is identified from the tractor's make, model, the voltage of the electrical system and the type of light being replaced. Customers send these details and a photo of the existing light to the Nick Young Tractor Parts team, and the parts team matches the correct work light, beacon, lens or bulb.
Do you supply lighting for older and classic tractors?
Nick Young Tractor Parts supplies lighting for older and classic tractors, including period-style headlamps, lenses and rear lights, as well as LED upgrades for owners who want brighter, more reliable lighting on a working classic.
